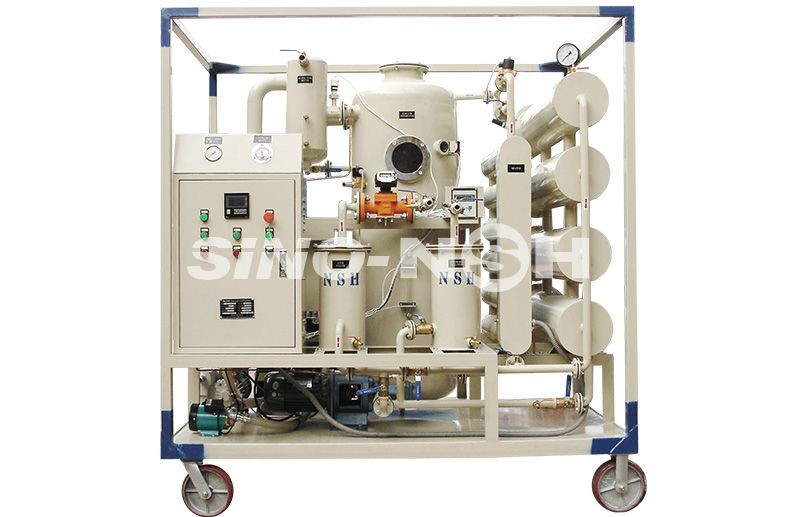

High Vacuum And Fast Oil Filter Speed Vacuum Insulation Oil Purifier VFD Series
VFD Introduction:
VFD series are mainly used to improve the performance of insulating oil. It can effectively and quickly remove trace water, gas, particles and other substances in insulating oil, thus improving the performance of transformers, circuit breakers, transformers, cables and capacitors with insulating system. VFD series professional purification brand oil, high voltage insulation oil, ultra high voltage transformer. In addition, it is also suitable for handling low viscosity lubricants.
OPTIMIZED STRUCTURES:
•Dehydration (Degassing) System
•Filtering System
•Oil Heating System
•Control panel
•Vacuum pump & Roots pump, screw pump
•Cooling System and Condensing System
Auto-Control And Protection System
PRESENTATIONS OPTIONS:
•Base frame with caster wheels
•Metallic enclosure cover on caster wheels
•Metallic enclosure cover on single axletrailer
•Base frame on double axle trailer
•Metallic enclosure cover on double axletrailerMetallic enclosure cover and operation room on double axle trailer.
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950
|
